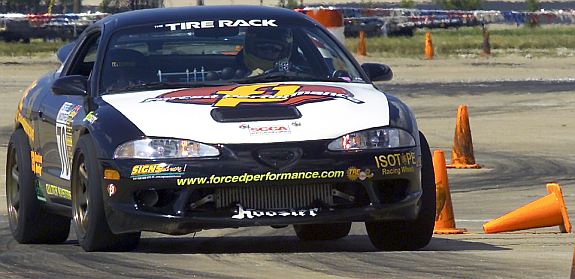

2005 STREET MODIFIED EAGLE TALON SPECIFICATIONS

VEHICLE LAYOUT Type.................................Four-place competition coupe Model................................1997 Eagle Talon TSi AWD Drivetrain...........................Transverse front engine, all wheel drive Construction.........................Stock-type unibody steel WEIGHTS Dry Weight...........................2740 lbs Weight Distribution..................60/40 front/rear ENGINE Type.................................Mitsubishi 4G63T inline 4 Construction.........................Cast iron block, aluminum head Displacement.........................2.0 litres Valve gear...........................DOHC, 4 valves per cylinder Crankshaft...........................Stock nodular iron Connecting rods......................Stock steel Pistons..............................Stock cast aluminum Fuel Injection System................GEMS Multipoint Speed/Density Injectors............................RC 4 X 550cc/min Air Filter...........................K&N cone Spark plugs..........................NGK Exhaust system.......................3" Buschur Racing stainless open pipe Turbocharger.........................Forced Performance "Big 28" Garrett Intercooler..........................24"X7" Griffin air-to-air Compressor Bypass Valve..............TurboXS Pro Boost pressure.......................24PSI Maximum RPM..........................7800 RPM Power output.........................348 HP TRANSMISSION Type.................................5 speed manual by TRE Centre Diff..........................Quaife ATB Front Diff...........................Quaife ATB Clutch...............................Clutchmasters Stage IV Flywheel.............................Clutchmasters aluminum Driveshaft...........................ACPT Carbon Fibre REAR AXLE Type.................................Mitsubishi limited slip SUSPENSION Shocks...............................Bilstien remote-resevoir single adustable Springs..............................Hypercoil (900lbs ft, 400lbs rear) Sway bars............................RM Racing 21mm front, OEM rear WHEELS Type.................................Enkei RPF1 forged aluminum Size.................................18" X 10.5" +15mm TIRES Type.................................Hoosier A3S05 autocross compound Size.................................285 40R18 BRAKES Calipers.............................Wilwood BSL-6 Rotors...............................Wilwood Pads.................................Hawk ELECTRONICS Datalogger...........................Edelbrock QwikData 16 channel EFI Control..........................GEMS Sequential 4 speed/density Lambda...............................Motec PLM Ignition.............................MSD DIS-2 Battery..............................Baker Precision Sealed Gel Gauges...............................AutoMeter UltraLite INTERIOR/BODY Steering Wheel.......................MOMO Course Seats................................MOMO Rookie Hood.................................SquidSkins fiberglass

Performance Specifications

Best Recorded 1/4 Mile Time (27 July 2002)

(Later work predicted a high 11 second time but we never made it to the track to prove it)

Best Recorded 0-60MPH time (June 2005): 3.32 seconds

Lateral G Limits: 1.7 transient, 1.3 sustained

Modification Diary

• GEMS ECU Install
• Hood Vent
• Volk TE37 Wheels
• Seats and Steering Wheel
• Remote Resevoir Shocks
• Carbon Fibre Driveshaft
• Airbox and Breather
• A-Arms and Other Stuff
• ShockTek to Bilstein Conversion
• Suspension Modeling Project
• Brakes
• Intake Pipe and BOV
• Alignment Rack
• Dyno Day
